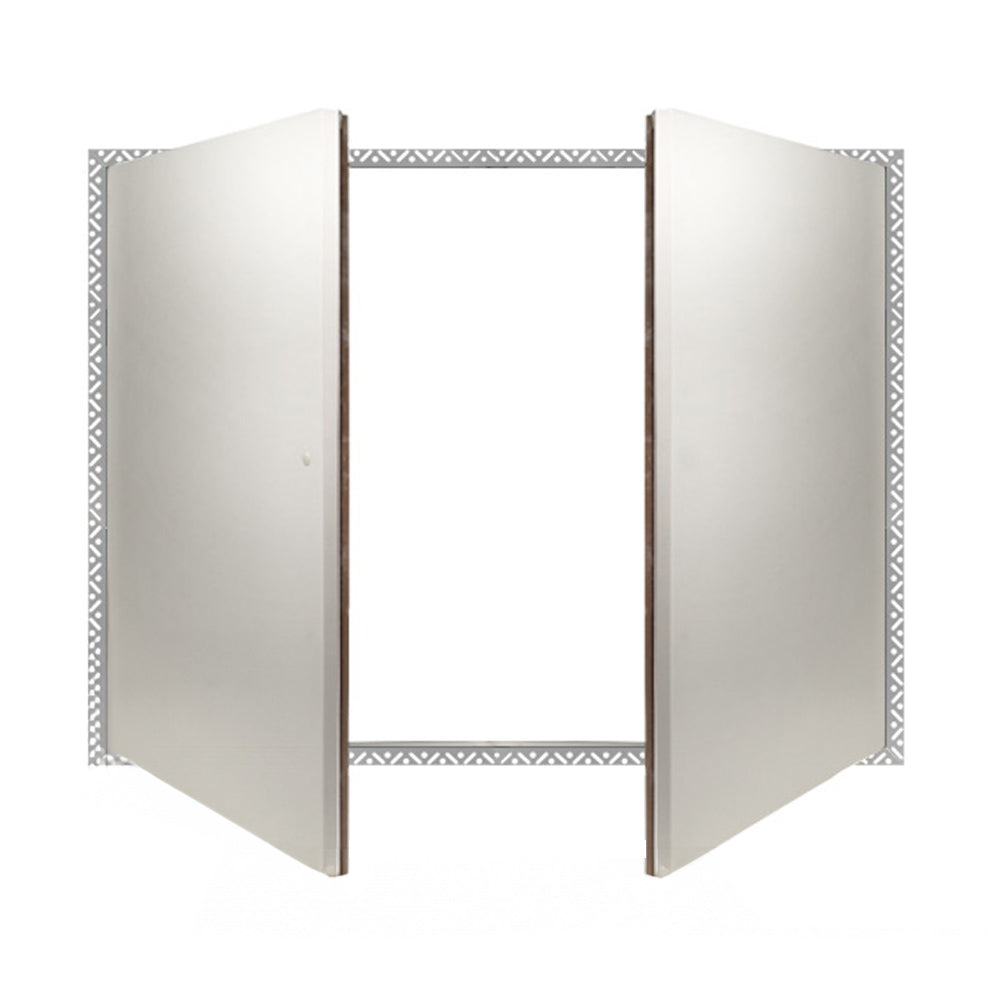

Non Fire Rated Riser Door Access Panel 1000 x 2000mm - Beaded Frame - Double Door

The Non Fire Rated Riser Door Access Panel 1000 x 2000mm – Beaded Frame Double Door is specifically designed for dry-lined wall structures that require easy access or separation. This access panel is ideal for larger openings, providing secure entry to service shafts, concealed flues, ducts, and chimney systems. With its beaded frame design, the panel integrates seamlessly into plasterboard walls, creating a nearly invisible appearance once installed and finished.

Built from robust 1.2mm Zintec steel, the panel is designed to offer enhanced rigidity and long-lasting performance. For projects requiring an alternative material, stainless steel options are available upon request. The double-door design, hinged on the short side, allows for easy access to larger areas, making it perfect for riser shafts and other extensive service openings. The 3-point locking mechanism ensures maximum security, while the concealed hinge system provides a clean and professional appearance.

The beaded frame design allows the panel to sit flush with the wall, blending seamlessly with the plasterboard and offering a smooth, continuous surface. The access panel also features a fully concealed heavy-duty piano hinge running the full length of the door, providing increased stability and durability. This model is engineered for quick and straightforward installation, and the doors are easily removable without the need for tools, ensuring hassle-free access for maintenance and inspections.

Key Features:

• Non Fire-Rated: Ideal for use in areas that do not require fire-rated protection, providing a lightweight and versatile access solution for dry-lined walls.
• Versatile Application: Perfect for accessing building services, concealed flues, ducts, and chimney systems, as well as providing separation in walls and ceilings.
• Beaded Frame Design: The beaded frame allows for a seamless fit into plasterboard walls, making the panel nearly invisible once installed and finished.
• Double-Door Design: Allows for convenient access to larger openings, making it suitable for service shafts and utility areas.
• Durable Construction: Made from 1.2mm Zintec steel for maximum strength and rigidity. Stainless steel options are available upon request.
• 3-Point Locking Mechanism: Comes equipped with a 3-point lock for added security, enclosed with a blanking plate. Additional locking options are available.
• Precision Engineering: Features a fully concealed, full-length heavy-duty piano hinge and a metal-faced door for superior durability and performance.
• Sound Insulation: Provides a 30Db measured rating for sound insulation, reducing noise transfer between rooms.
• Quality Finish: Supplied in a polyester powder coating in White RAL 9010 20% gloss, providing a clean and professional look that complements any interior.
• Maintenance-Friendly: Doors are easily removable for quick access and hassle-free maintenance of concealed services.
• Easy Installation: Designed for easy fitting into existing wall openings. Sizes listed are for the door opening; add approximately 5mm for the structural opening and allow 50mm for overall depth.
• Guaranteed: Backed by a 12-month warranty, providing peace of mind and assurance in the product’s quality.

Product Specifications:

• Overall Size: 1000mm x 2000mm (Door Opening)
• Material: 1.2mm Zintec steel (Stainless steel options available upon request)
• Finish: Polyester powder-coated in White RAL 9010, 20% gloss
• Locking Mechanism: 3-point lock as standard (Additional locking options available)
• Sound Insulation: 30Db measured rating
• Structural Opening: Add approximately 5mm to the listed door opening size to determine the structural opening required.
• Overall Depth: 50mm

This Non Fire Rated Riser Door Access Panel 1000 x 2000mm – Beaded Frame Double Door is the ideal solution for providing access to larger openings in dry-lined wall structures. With its robust construction, seamless fit, and customizable locking options, it ensures that concealed services are both accessible and secure, while maintaining the visual aesthetics of the space.

Please Note: This product is made to order and is not eligible for return.
