Non-Fire Rated - FlipFix Access Panel - Metal Door - Picture Frame

Non-Fire Rated - FlipFix Access Panel - Metal Door - Picture Frame

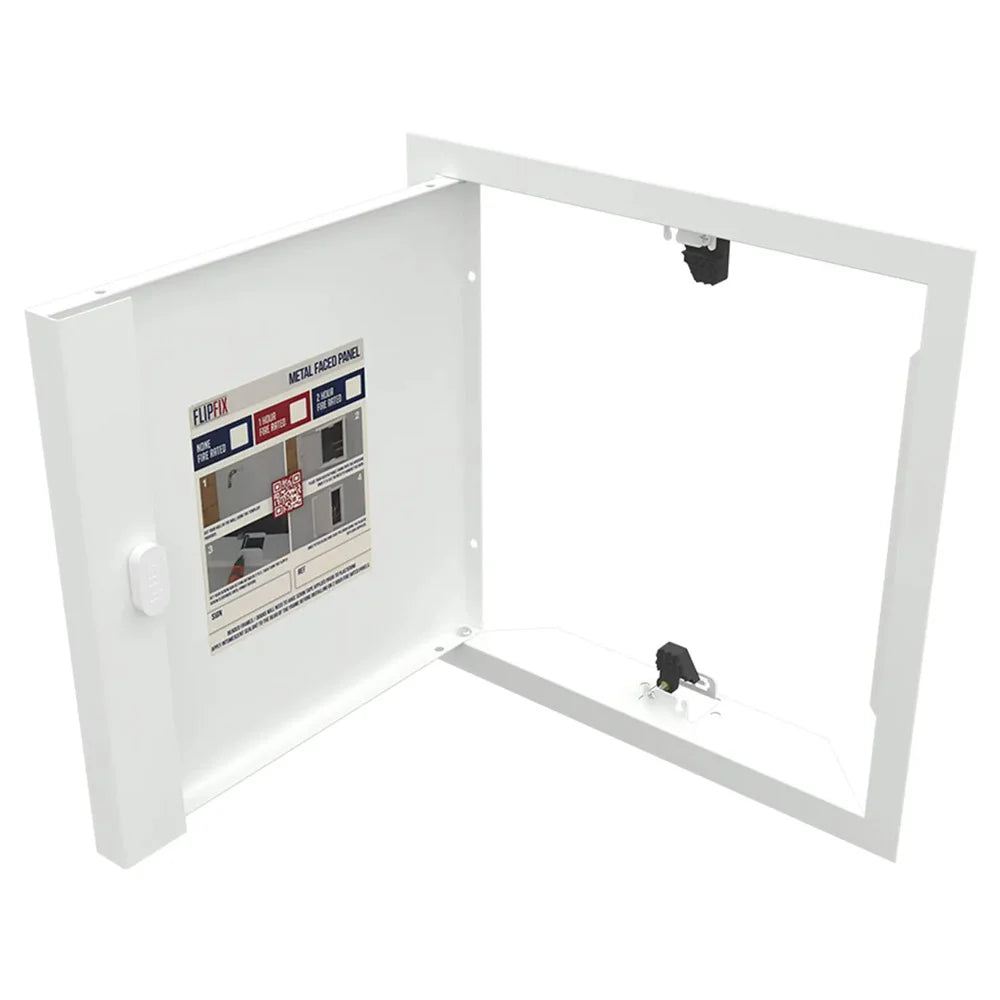

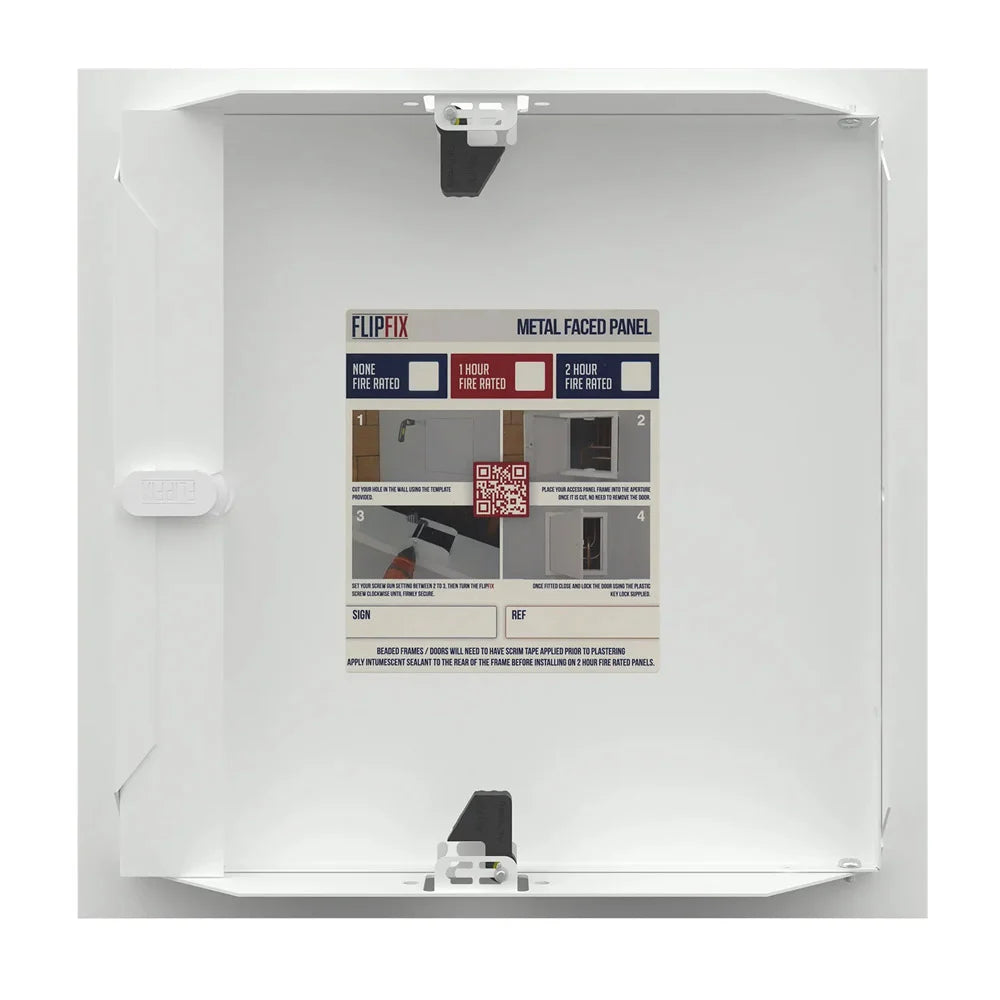

FlipFix Metal Access Panel
The FlipFix Metal Access Panel is a versatile, non-fire rated solution ideal for both wall and ceiling installations. With its sleek metal-faced door and 20mm mitreless picture frame, it offers a modern, flush finish that enhances any space. Supplied with a flush lock and tee key.

Easy Installation

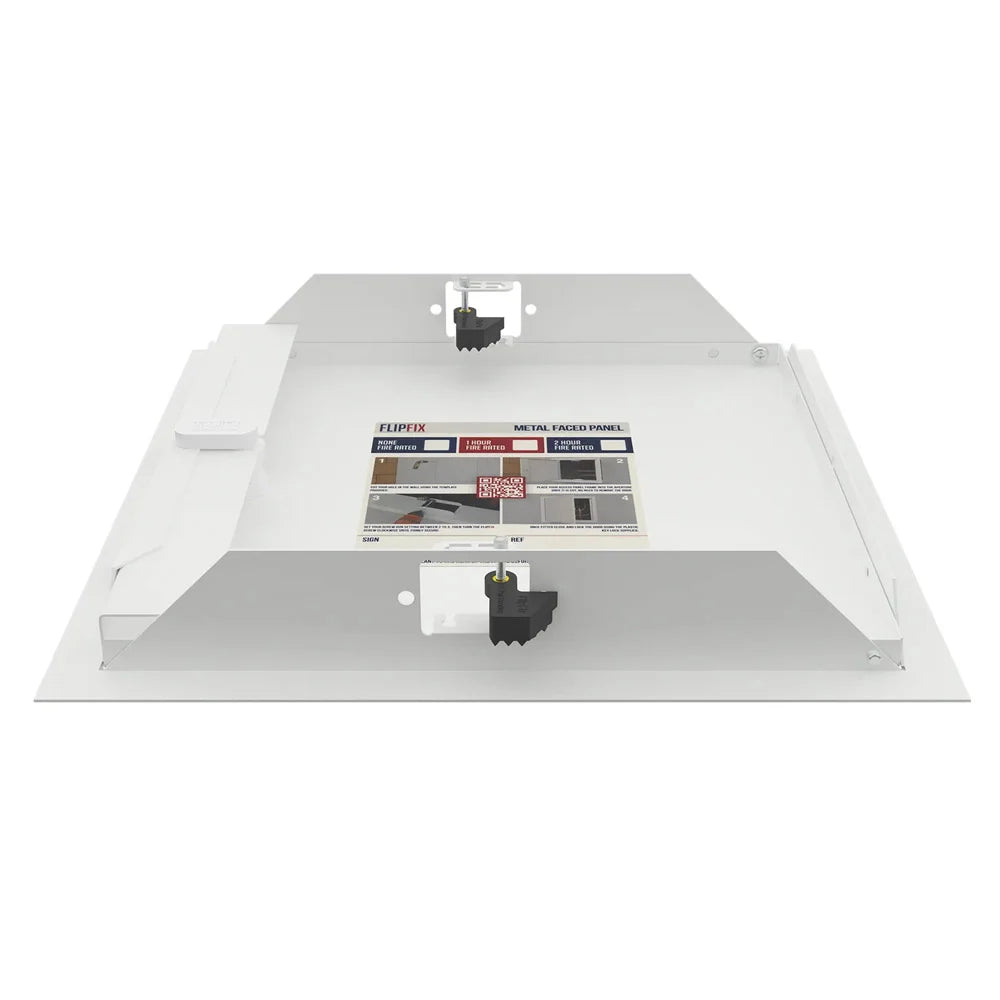

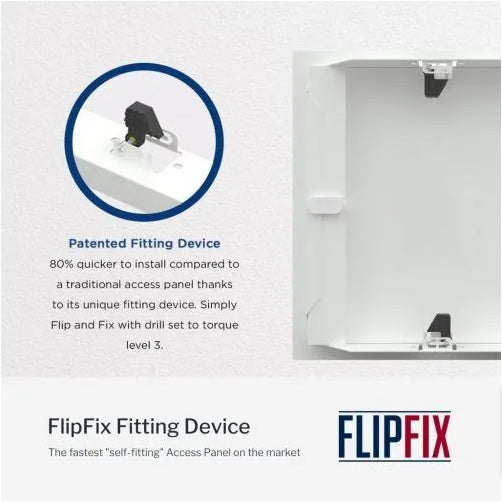

Save time and reduce fitting costs with the revolutionary FlipFix installation system, designed to securely clamp to plasterboard without the need for a timber surround. Simply cut, flip, and fix—installing the panel is up to five times faster compared to traditional methods. Suitable for plasterboard thicknesses from 8mm to 32mm.

Key Features & Benefits

• Application: Suitable for walls and ceilings.

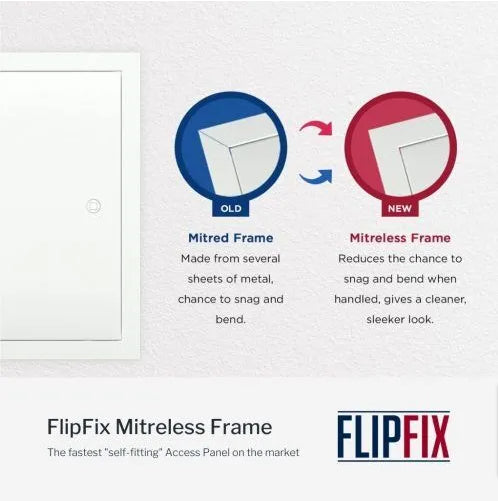

• Design: 20mm mitreless picture frame for a clean, modern look.

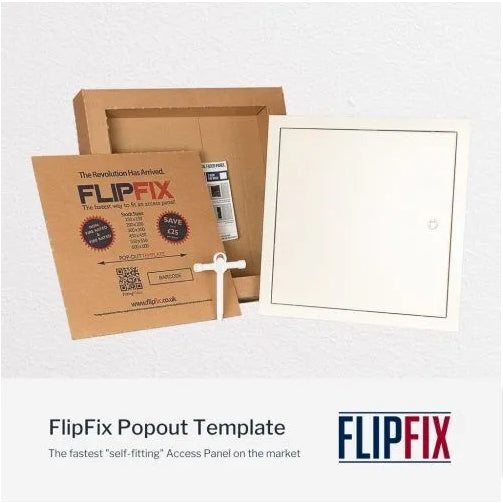

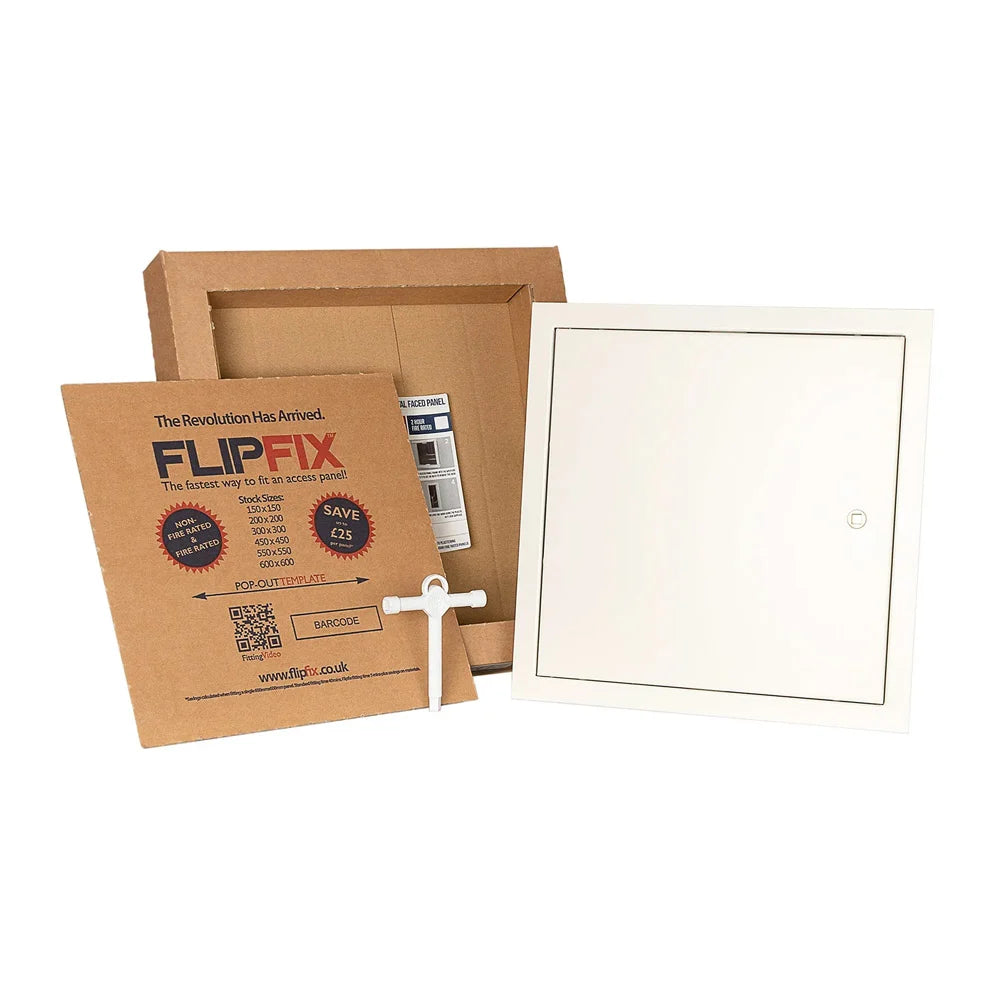

• Installation: Comes with a popout template and innovative FlipFix device for easy fitting.
• Finish: Powder coated in RAL 9010, 30% gloss.

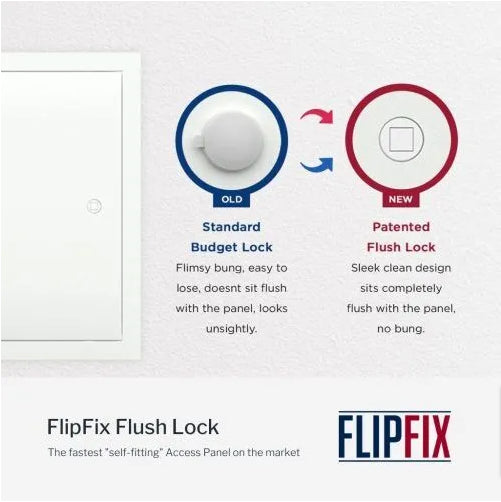

• Functionality: Supplied with a multi-purpose tee key for secure locking.
• Guarantee: Manufactured in the UK with a 10-year guarantee.

Please Note: The panel is intended for inspection purposes only and is not suitable for personal access.

Available Sizes:

• 150mm x 150mm (199mm x 199mm including frame)
• 200mm x 200mm (248mm x 248mm including frame)
• 300mm x 300mm (348mm x 348mm including frame)
• 450mm x 450mm (498mm x 498mm including frame)
• 550mm x 550mm (598mm x 598mm including frame)
• 600mm x 300mm (648mm x 347mm including frame)
• 600mm x 600mm (648mm x 648mm including frame)
• 900mm x 600mm (948mm x 648mm including frame)
• 1200mm x 600mm (1248mm x 648mm including frame)
